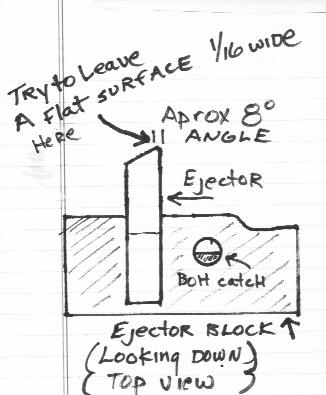

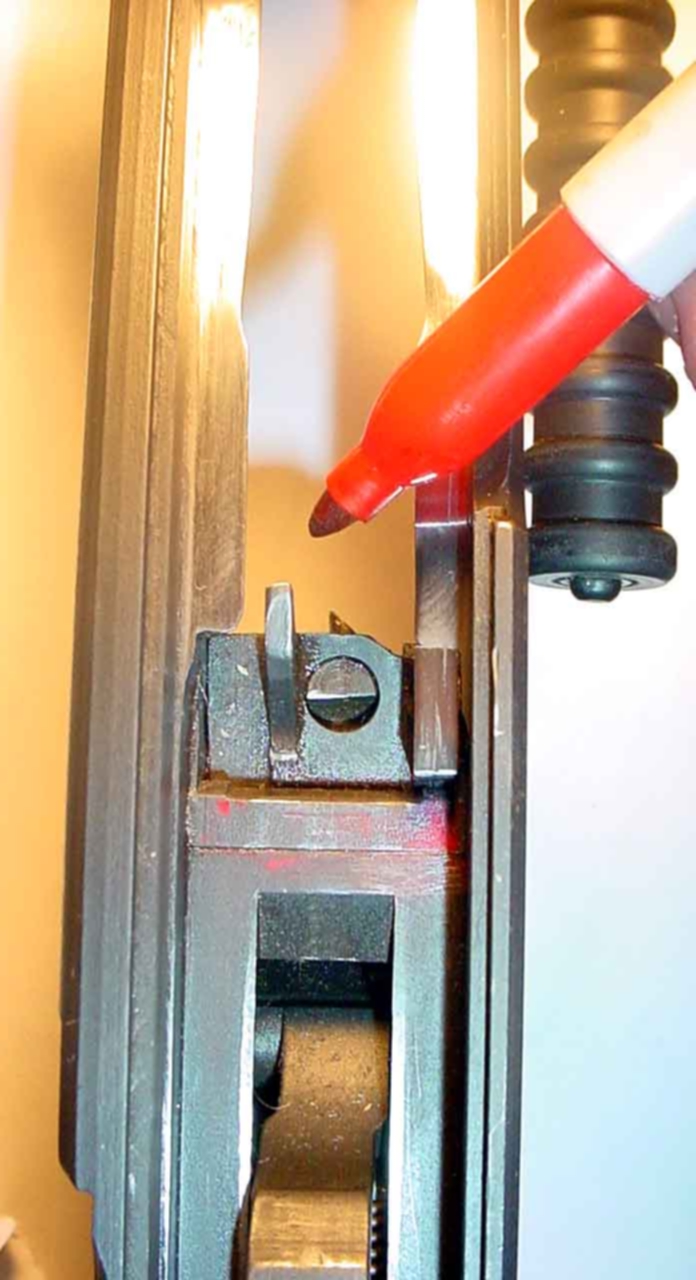

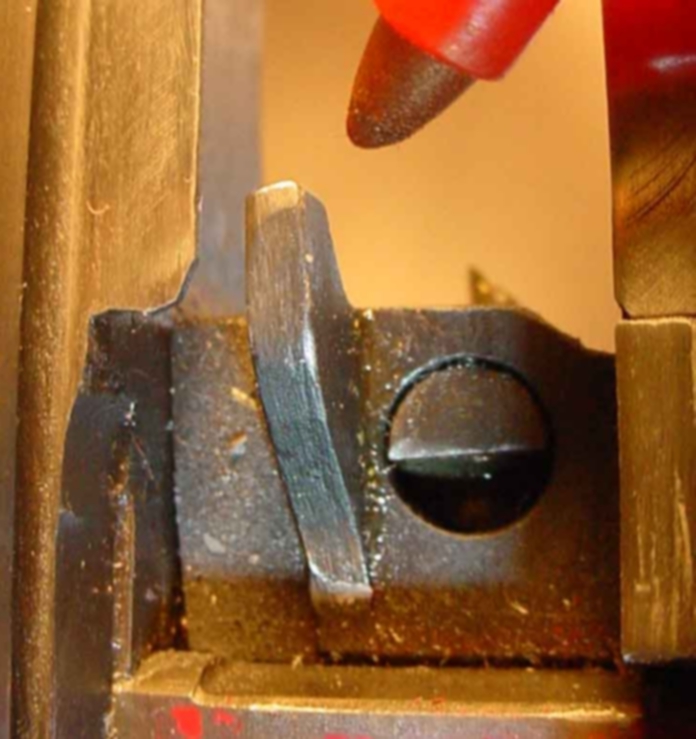

TOP VIEW...use a non honeycomb type lapping diamond file ..take your
time...make a few strokes and test by pulling charge handle (forcefully) dust
cover on with ( EMPTY ) brass to simulate the ejection process..(and a piece of
duct tape on the side of receiver where the strikes or "kisses" take
place ...this will show a strike by the brass ) ...as you go you will notice
the empty brass ejecting more forward than lateral..... works 99% of the time

this angle will create less spin on the empty brass ejection by making the
first point of impact between the bottom of brass and the ejector face more to
the centerline of the brass instead of on the outboard side which makes it spin
faster......REMEMBER that the PIVOT POINT for the ejecting brass is the
EXTRACTOR on the RIGHT......when brass hits EJECTOR face more to the LEFT ....
more spin is created.........fading back the top of the same angle on ejector
face will eject upward ....you should end up with a 10 -20 degree forward 10
degree upward ejection...and brass is well out of rifle before empty case mouth
gets a chance to rotate and impact receiver
